Hybrid Electrical are New Zealand’s authorized systems integrator for Deif products. Specializing in marine electrical and power generation, Hybrid Electrical can provide custom turnkey packages, system upgrades, breakdown repairs and replacement parts for Deif’s extensive product range.
Deif’s power management range caters for diesel generators, solar panels, wind energy and battery energy storage (BES) systems. Ensuring efficiency, safety, and environmental sustainable systems is crucial in their product range.
MARINE AND OFFSHORE
Deif provide both cost effective, and more complex class approved options for marine vessels. We can complete designs for vessel new builds, retrofits to replace an existing power management systems, upgrades for end of line products and service work on existing systems.
Deif provide controllers for single purpose applications and for full power management systems. Power management options have the option of a Codesys PLC layer for more customizable automation.
Click of the images below for links to full details on Deif’s website.
SYSTEM UPGRADES
We can complete system upgrade for end of line controllers and we can also complete full system upgrades from other power management systems.
The listed image is an example from a system upgrade Hybrid Electrical completed from PPU2 controllers to PPU300 controllers. This system also had custom AGI400 touch screens fitted for control and monitoring of the system.

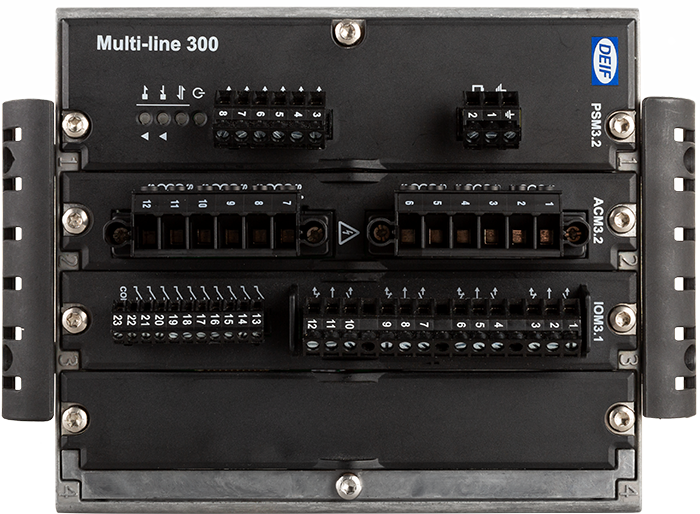

MULTI LINE 300
Deif’s multi line 300 controller range supersede the now end of line Multi Line 2 and 3 controllers (PPU2, PPU3, PPM2 and PPM3).
Designed for applications in the marine and offshore industry, DEIF’s innovative PPM 300 solution is a versatile, intelligent generator control platform.
Incorporating an extensive range of control, protection and supervision functions, PPM 300 applications range from generator control and protection to engineered power management solutions developed for diesel generators (including emergency diesel generators), shaft generators, battery energy storage, shore connections, and bus tie breakers.

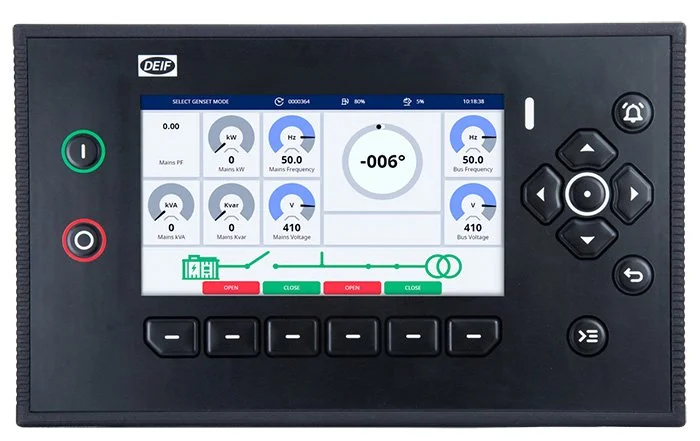

IE 250 MARINE
The DEIF iE 250 Marine is a powerful, versatile, and modular controller that you can tailor to a wide range of control solutions on coastal and commercial vessels. It offers advanced cybersecurity features, and the device is incredibly easy to use for designers, installers, and crews.
Click on the IE250 image to be redirected to Deif’s website for more information.
LAND BASED APPLCATIONS
Deif offer an extensive range of controllers and systems to accommodate land based applications. These include single generators, multiple generator application, backup generator applications, automatic transfer switch and peak shaving. The SGC, AGC and IE series are the most popular.
The ASC (automatic sustainable controller) range had been designed to control, monitor and protect renewable energy sources. Controllers can be configured to manage solar arrays, inverters, battery systems (BES) and hydro generation plants.

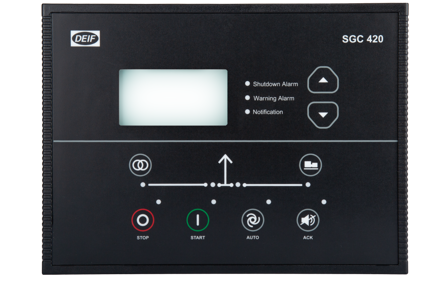

SINGLE GENERATOR CONTROLLER
Compatible with a wide range of engines, the SGC 420 Mk II offers flexible genset and breaker control with extensive configuration options including live data supervision and PLC logic customisation.

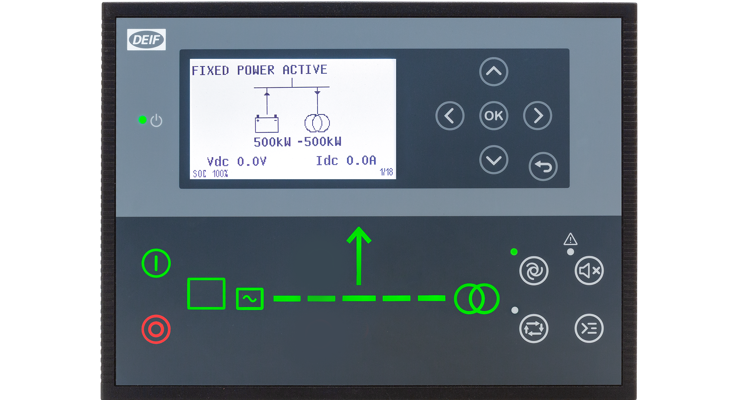

ASC 150 - FLEXIBLE ENERGY CONTROLLER
The ASC 150 Storage provides effective, flexible, and scalable energy storage system (ESS) control with a wide range of options for greenfield and brownfield hybrid power applications.
It can be used on its own for ESS/hybrid rental or integrated in third-party plant control solutions or a DEIF power management system.
AGC 150 - ADVANCED GENSET AND HYBRID CONTROLLER
The AGC 150 Hybrid comes with all the necessary functions for protection and control of a hybrid installation with PV and genset. The controller is ideal for small and medium PV plants with up to 16 inverters, e.g. rooftop PV plants.
The AGC 150 Genset controller containing all necessary functions for control and protection of a genset. The slim design makes the genset controller suitable for paralleling even small gensets thus the AGC 150 is integrable in nearly all types of gensets.
